Track Aligners - HO, N & HOn3

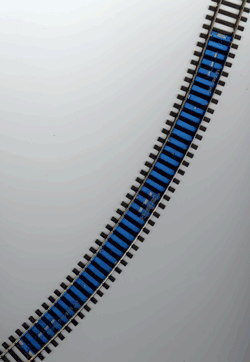

This combines a track alignment jig with a layout template!

Four track aligners match the PECO Setrack radius 1 to 4. There is also a Radius 5 aligner available that will enable a fifth track to be laid outside radius 4 with the same track spacing.

Instructions for use are at the bottom of this page.

They are produced in 3mm acrylic in a variety of colours and radii for 16.5mm (HO), 9mm (N) and 10.5mm (HOn3) trackwork. They are designed to align Peco, Atlas, Micro Engineering and all other generally available flexitrack.

HO track aligners come in two lengths - short and long. The short is approximately 165mm (6.5") in length and the long is approximately 290mm (11.25") in length. There are also two lengths of straight aligners - 150mm (6") in length (short) and 280mm (11") in length (long). N and HOn3 aligners come in long only.

Each of the templates are designed to clip together end to end to enable more complex curves to be produced and to use them as a track template guide.

They are designed to enable the track to be pinned into position and the Aligner removed leaving the track in position.

Can't visit the shop? Why not mail order?

We Specialise in Mail Order within Australia and throughout the World

For details of costs, insurance, payment see How to Buy.

Track Aligners - HO

Code	Description	Price A$
BMTA14L	Track Aligner Long 14" radius	$12.00
BMTAR1L	Track Aligner Long 14.6" radius (Setrack Radius 1)	$12.00
BMTAR2L	Track Aligner Long 17.25" radius (Setrack Radius 2)	$12.00
BMTAR3L	Track Aligner Long 19.9" radius (Setrack Radius 3)	$12.00
BMTA20L	Track Aligner Long 20" radius	$12.00
BMTA225L	Track Aligner Long 22.5" radius	$12.00
BMTAR4L	Track Aligner Long 22.5" radius (Setrack Radius 4)	$12.00
BMTA24L	Track Aligner Long 24" radius	$12.00
BMTA25L	Track Aligner Long 25" radius	$12.00
BMTA5L	Track Aligner Long 25.14"/638.5mm radius (Setrack Radius 5)	$12.00
BMTA26L	Track Aligner Long 26" radius	$12.00
BMTA27L	Track Aligner Long 27" radius	$12.00
BMTA30L	Track Aligner Long 30" radius	$12.00
BMTA33L	Track Aligner Long 33" radius	$12.00
BMTA36L	Track Aligner Long 36" radius	$12.00
BMTA38L	Track Aligner Long 38" radius	$12.00
BMTA650L	Track Aligner Long 650mm radius	$12.00
BMTA700L	Track Aligner Long 700mm radius	$12.00
BMTA900L	Track Aligner Long 900mm radius	$12.00
BMTA950L	Track Aligner Long 950mm radius	$12.00
BMTASTL	Track Aligner Long straight	$12.00
BMTA18L	Track Aligner Long 18" radius	$12.00
BMTA14S	Track Aligner Short 14" radius	$9.00
BMTA18S	Track Aligner Short 18" radius	$9.00
BMTA20S	Track Aligner Short 20" radius	$9.00
BMTAR4S	Track Aligner Short 22.5" radius (Setrack Radius 4)	$9.00
BMTA24S	Track Aligner Short 24" radius	$9.00
BMTA30S	Track Aligner Short 30" radius	$9.00
BMTA36S	Track Aligner Short 36" radius	$9.00
BMTA650S	Track Aligner Short 650mm radius	$9.00
BMTASTS	Track Aligner Short straight	$9.00

Track Aligners - N

Code	Description	Price A$
BMTAN12L	Track Align N 12"	$12.00
BMTAN15L	Track Align N 15"	$12.00
BMTAN18L	Track Align N 18"	$12.00
BMTAN20L	Track Align N 20"	$12.00
BMTAN24L	Track Align N 24"	$12.00

Track Aligners - HOn3

Code	Description	Price A$
BMTANSL	Track Align N Straight	$12.00
BMTAHON312L	Track Aligner HOn3 12"	$12.00
BMTAHON315L	Track Aligner HOn3 15"	$12.00
BMTAHON318L	Track Aligner HOn3 18"	$12.00
BMTAHON320L	Track Aligner HOn3 20"	$12.00

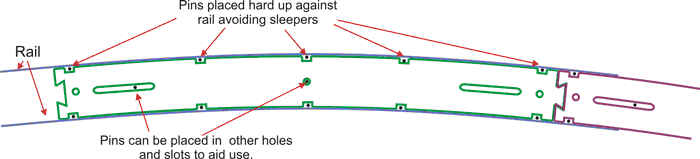

Diagram showing the use of the cutouts in the sides of the Aligner and the other slots and holes to aid track templating.
